Capture card not displaying image

Michael251003 · Oct 11th 2025

Hi hyperion users!

i’m a new hyperion user. currently i’ve got some problems where capture card isn’t displaying an image through hyperion web ui. leds are working as i can do the effects.

using a fire stick 4k into a pioneer avr then hdmi splitter and capture card into the pi.

using a pi3b

these are the links to the splitter and capture card

HDMI 2.0b Splitter 1 in 2... https://www.amazon.co.uk/dp/B0FGJ7PB8R?tag=hyperioforum-21&ref=ppx_pop_mob_ap_share

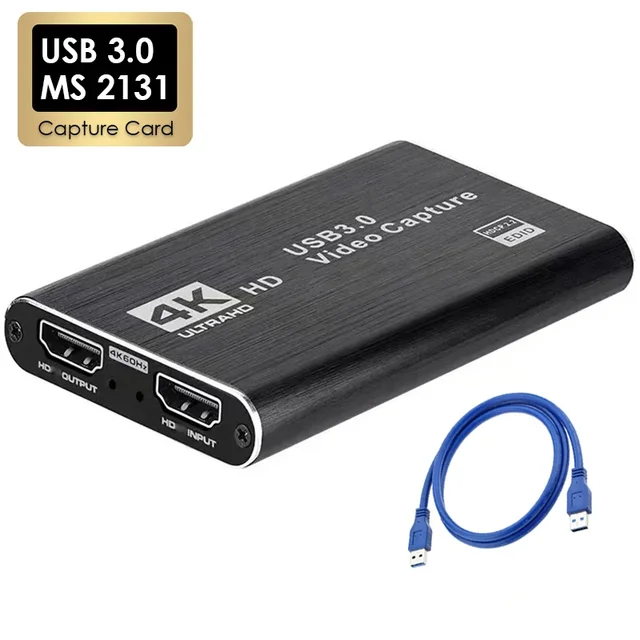

I just found this on AliExpress: ￡8.72 | 4K USB 3.0 Video Capture Card HDMI-compatible 1080P 60Hz HD Video Recorder Grabber For PS4 OBS Game Recording Live Streaming

￡8.72 | 4K USB 3.0 Video Capture Card HDMI-compatible 1080P 60Hz HD Video Recorder Grabber For PS4 OBS Game Recording Live Streaming

a.aliexpress.com

is anyone able to point me in the right direction to getting this to work? that would be amazing!

thanks

mike

Ambient_theater77 · Oct 12th 2025

okay, use only 1 channel MAIN HDMI out on AVR. (deselect output 2 if available)

connect the splitter to that channel, set on Auto not Copy mode.

then main TV on output channel 2

then the loop grabber hdmi cable on channel 1.

usb to Raspi 3b.

and put the log here >> debuglog with expertsettings level

Lord-Grey · Oct 12th 2025

Please checkout the following thread in addition

Post

RE: Black image from capture card

[…]

If the grabber produces a black image, it is likely that the the brightness is set to zero.

To get this corrected:

a) Switch to Expert Setting
b) Check the Control values (see 1.)
c) Press Button "Default Hardware controls" (2.)
hyperion-project.org/index.php?attachment/8035/

d) The Control Values should have changed (3.)

hyperion-project.org/index.php?attachment/8036/

e) Click Save (4.)

Would be great, if you could report back, if that worked.

I updated the Release notes to ensure that people can…

Lord-Grey

Sep 25th 2025

and review the grabber‘s hardware control settings.

Michael251003 · Oct 12th 2025

Will try these now.

i also have a problem where my pi seems to disconnect from the wifi so i cant access it on putty or hyperion web ui.

Weirdly after all this i unplugged the pi and plugged back in and its now following the screen. still cant access it over wifi tho annoyingly.

gone into my wifis ip to check whats connected to it. i can see it sayd rasberrypi but when i type the ip address into the internet. it times out
