Unable to capture the HDMI with I2C

zacol · 10. März 2023

This is my first time trying to configure hyperion, but unfortunately I'm stuck and need help.

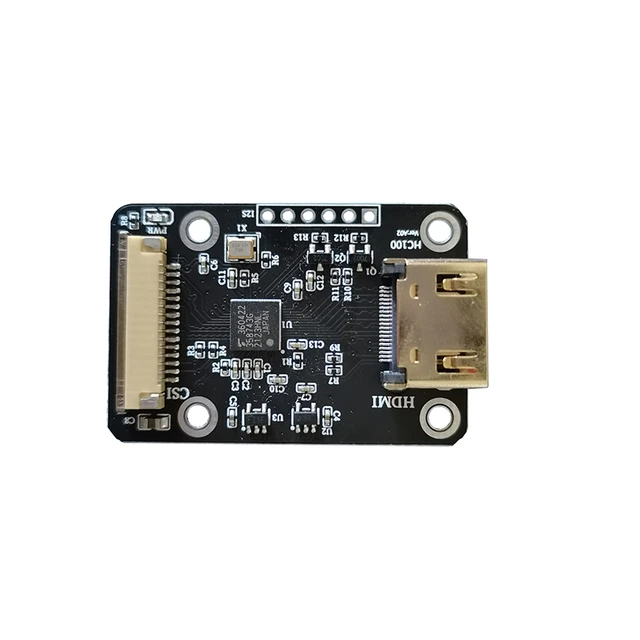

I am using a Raspberry Pi 3B+, such a capture board Sa11338cc131c4218a811e5164c36f0a0A.jpg_640x640Q90.jpg_.webp

and such a splitter:

ROZDZIELACZ-SPLITTER-HDMI-2-0-4K-WIREWAY-WW411012

I installed everything according to the instructions and configured the usb capturing section. Unfortunately when saving the settings I see errors like this:

Code

2023-03-10T14:59:00.000 |__| V4L2              : <ERROR> Throws error nr: VIDIOC_STREAMON error code 22, Invalid argument
2023-03-10T14:59:00.001 |__| V4L2              : <ERROR> Throws error nr: VIDIOC_DQBUF error code 22, Invalid argument

The `v4l2-compliance` command fails in the following section:

Code

Format ioctls (Input 0):
    test VIDIOC_ENUM_FMT/FRAMESIZES/FRAMEINTERVALS: OK
    test VIDIOC_G/S_PARM: OK
    test VIDIOC_G_FBUF: OK
    test VIDIOC_G_FMT: OK
        G_FMT:     1024x768@150x50, 1, 0, 0x7e8bba20, 0, (nil), ff
        TRY/S_FMT: 1024x768@150x50, 1, 0, (nil), 0, (nil), ff
        fail: v4l2-test-formats.cpp(722): Video Overlay: TRY_FMT(G_FMT) != G_FMT
    test VIDIOC_TRY_FMT: FAIL
        G_FMT:     1024x768@150x50, 1, 0, 0x7e8ba974, 0, (nil), ff
        TRY/S_FMT: 1024x768@150x50, 1, 0, (nil), 0, (nil), ff
        fail: v4l2-test-formats.cpp(1127): Video Overlay: S_FMT(G_FMT) != G_FMT
    test VIDIOC_S_FMT: FAIL
    test VIDIOC_G_SLICED_VBI_CAP: OK (Not Supported)
    test Cropping: OK (Not Supported)
    test Composing: OK (Not Supported)
    test Scaling: OK

Alles anzeigen

The `v4l2-ctl --all` returns me this:

Code

Driver Info:
    Driver name      : bm2835 mmal
    Card type        : mmal service 16.1
    Bus info         : platform:bcm2835-v4l2-0
    Driver version   : 5.15.84
    Capabilities     : 0x85200005
        Video Capture
        Video Overlay
        Read/Write
        Streaming
        Extended Pix Format
        Device Capabilities
    Device Caps      : 0x05200005
        Video Capture
        Video Overlay
        Read/Write
        Streaming
        Extended Pix Format
Priority: 2
Video input : 0 (Camera 0: ok)
Format Video Capture:
    Width/Height      : 1024/768
    Pixel Format      : 'YUYV' (YUYV 4:2:2)
    Field             : None
    Bytes per Line    : 2048
    Size Image        : 1572864
    Colorspace        : SMPTE 170M
    Transfer Function : Default (maps to Rec. 709)
    YCbCr/HSV Encoding: Default (maps to ITU-R 601)
    Quantization      : Default (maps to Limited Range)
    Flags             :
Format Video Overlay:
    Left/Top    : 150/50
    Width/Height: 1024/768
    Field       : None
    Chroma Key  : 0x00000000
    Global Alpha: 0xff
    Clip Count  : 0
    Clip Bitmap : No
Framebuffer Format:
    Capability    : Extern Overlay
            Global Alpha
    Flags         : Overlay Matches Capture/Output Size
    Width         : 32
    Height        : 32
    Pixel Format  : 'YU12'
Streaming Parameters Video Capture:
    Capabilities     : timeperframe
    Frames per second: 90.000 (90/1)
    Read buffers     : 1

User Controls

                     brightness 0x00980900 (int)    : min=0 max=100 step=1 default=50 value=50 flags=slider
                       contrast 0x00980901 (int)    : min=-100 max=100 step=1 default=0 value=0 flags=slider
                     saturation 0x00980902 (int)    : min=-100 max=100 step=1 default=0 value=0 flags=slider
                    red_balance 0x0098090e (int)    : min=1 max=7999 step=1 default=1000 value=1000 flags=slider
                   blue_balance 0x0098090f (int)    : min=1 max=7999 step=1 default=1000 value=1000 flags=slider
                horizontal_flip 0x00980914 (bool)   : default=0 value=0
                  vertical_flip 0x00980915 (bool)   : default=0 value=0
           power_line_frequency 0x00980918 (menu)   : min=0 max=3 default=1 value=1
                0: Disabled
                1: 50 Hz
                2: 60 Hz
                3: Auto
                      sharpness 0x0098091b (int)    : min=-100 max=100 step=1 default=0 value=0 flags=slider
                  color_effects 0x0098091f (menu)   : min=0 max=15 default=0 value=0
                0: None
                1: Black & White
                2: Sepia
                3: Negative
                4: Emboss
                5: Sketch
                6: Sky Blue
                7: Grass Green
                8: Skin Whiten
                9: Vivid
                10: Aqua
                11: Art Freeze
                12: Silhouette
                13: Solarization
                14: Antique
                15: Set Cb/Cr
                         rotate 0x00980922 (int)    : min=0 max=360 step=90 default=0 value=0 flags=modify-layout
             color_effects_cbcr 0x0098092a (int)    : min=0 max=65535 step=1 default=32896 value=32896

Codec Controls

             video_bitrate_mode 0x009909ce (menu)   : min=0 max=1 default=0 value=0 flags=update
                0: Variable Bitrate
                1: Constant Bitrate
                  video_bitrate 0x009909cf (int)    : min=25000 max=25000000 step=25000 default=10000000 value=10000000
         repeat_sequence_header 0x009909e2 (bool)   : default=0 value=0
                force_key_frame 0x009909e5 (button) : flags=write-only, execute-on-write
          h264_minimum_qp_value 0x00990a61 (int)    : min=0 max=51 step=1 default=0 value=0
          h264_maximum_qp_value 0x00990a62 (int)    : min=0 max=51 step=1 default=0 value=0
            h264_i_frame_period 0x00990a66 (int)    : min=0 max=2147483647 step=1 default=60 value=60
                     h264_level 0x00990a67 (menu)   : min=0 max=13 default=11 value=11
                0: 1
                1: 1b
                2: 1.1
                3: 1.2
                4: 1.3
                5: 2
                6: 2.1
                7: 2.2
                8: 3
                9: 3.1
                10: 3.2
                11: 4
                12: 4.1
                13: 4.2
                   h264_profile 0x00990a6b (menu)   : min=0 max=4 default=4 value=4
                0: Baseline
                1: Constrained Baseline
                2: Main
                4: High

Camera Controls

                  auto_exposure 0x009a0901 (menu)   : min=0 max=3 default=0 value=0
                0: Auto Mode
                1: Manual Mode
         exposure_time_absolute 0x009a0902 (int)    : min=1 max=10000 step=1 default=1000 value=1000
     exposure_dynamic_framerate 0x009a0903 (bool)   : default=0 value=0
             auto_exposure_bias 0x009a0913 (intmenu): min=0 max=24 default=12 value=12
                0: -4000 (0xfffffffffffff060)
                1: -3667 (0xfffffffffffff1ad)
                2: -3333 (0xfffffffffffff2fb)
                3: -3000 (0xfffffffffffff448)
                4: -2667 (0xfffffffffffff595)
                5: -2333 (0xfffffffffffff6e3)
                6: -2000 (0xfffffffffffff830)
                7: -1667 (0xfffffffffffff97d)
                8: -1333 (0xfffffffffffffacb)
                9: -1000 (0xfffffffffffffc18)
                10: -667 (0xfffffffffffffd65)
                11: -333 (0xfffffffffffffeb3)
                12: 0 (0x0)
                13: 333 (0x14d)
                14: 667 (0x29b)
                15: 1000 (0x3e8)
                16: 1333 (0x535)
                17: 1667 (0x683)
                18: 2000 (0x7d0)
                19: 2333 (0x91d)
                20: 2667 (0xa6b)
                21: 3000 (0xbb8)
                22: 3333 (0xd05)
                23: 3667 (0xe53)
                24: 4000 (0xfa0)
      white_balance_auto_preset 0x009a0914 (menu)   : min=0 max=10 default=1 value=1
                0: Manual
                1: Auto
                2: Incandescent
                3: Fluorescent
                4: Fluorescent H
                5: Horizon
                6: Daylight
                7: Flash
                8: Cloudy
                9: Shade
                10: Greyworld
            image_stabilization 0x009a0916 (bool)   : default=0 value=0
                iso_sensitivity 0x009a0917 (intmenu): min=0 max=4 default=0 value=0
                0: 0 (0x0)
                1: 100000 (0x186a0)
                2: 200000 (0x30d40)
                3: 400000 (0x61a80)
                4: 800000 (0xc3500)
           iso_sensitivity_auto 0x009a0918 (menu)   : min=0 max=1 default=1 value=1
                0: Manual
                1: Auto
         exposure_metering_mode 0x009a0919 (menu)   : min=0 max=3 default=0 value=0
                0: Average
                1: Center Weighted
                2: Spot
                3: Matrix
                     scene_mode 0x009a091a (menu)   : min=0 max=13 default=0 value=0
                0: None
                8: Night
                11: Sports

JPEG Compression Controls

            compression_quality 0x009d0903 (int)    : min=1 max=100 step=1 default=30 value=30

Alles anzeigen

It looks like there is a problem with the splitter cause without the splitter, there is no error and I can see the screen with information about HDCP. With splitter, I've got an error and no screen. Any idea what I can do to make it work?

pclin · 10. März 2023

The fails in v4l2 indicate problems.

Can you get a picture of the grabber? Live video in Hyperion.

Do both outputs work on the splitter with TV? How did you set EDID? De-energized after setting? EDID Copy is usually the best setting.

What devices are you running?

What is connected to the splitter input?

You can find a list of the best grabbers and splitters here.

The best grabber is currently for about 10€ an HDMItoUSB Grabber with Macrosilicon Chip MS2130
